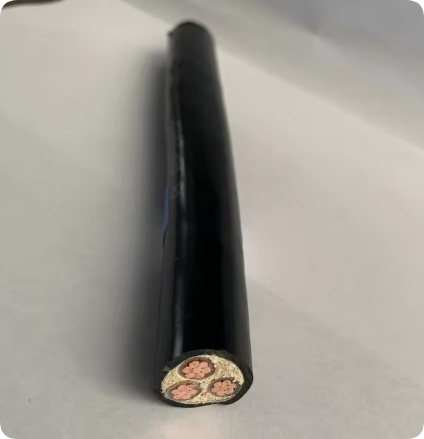

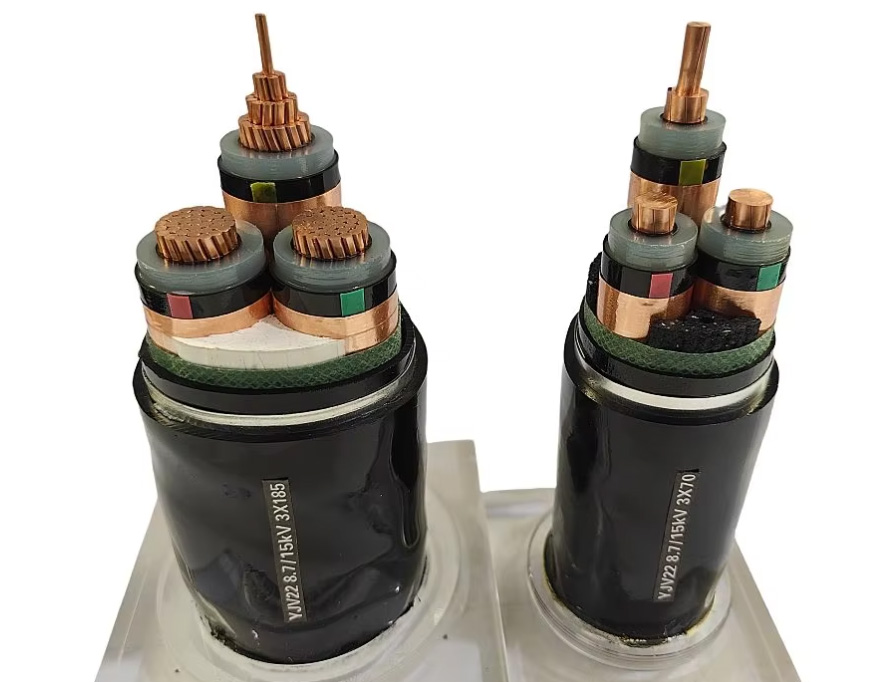

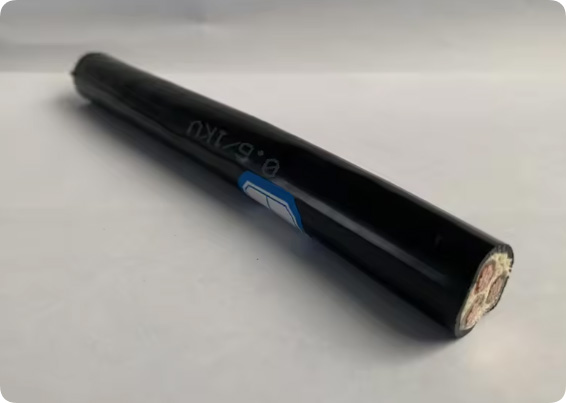

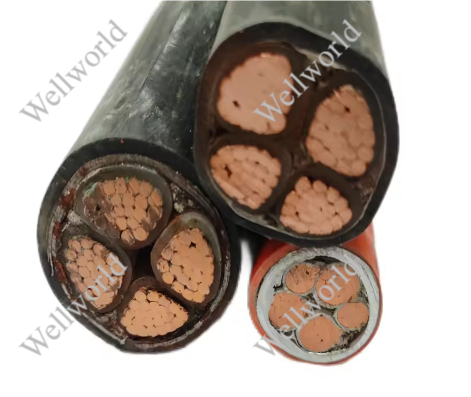

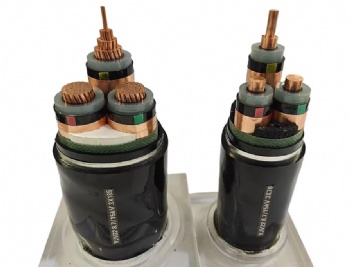

ZC-YJV22 Copper Core Power Cable

Description

Specification

Nominal cross	Insulation thickness	Sheath thickness	Approx overall	Approx weight of cable	Testing Voltage
MM²	MM	MM	MM	KG/KM	KV/5min
3X4	0.7	1.5	12	250	3.5
3X6	0.7	1.5	13	320	3.5
3X10	0.7	1.5	15	450	3.5
3X16	0.7	1.5	17	640	3.5
3X25	0.9	2.0	21	940	3.5
3X35	0.9	2.0	23	1260	3.5
3X50	1.0	2.0	27	1670	3.5
3X70	1.1	2.0	30	2280	3.5
3X95	1.1	2.0	34	3020	3.5

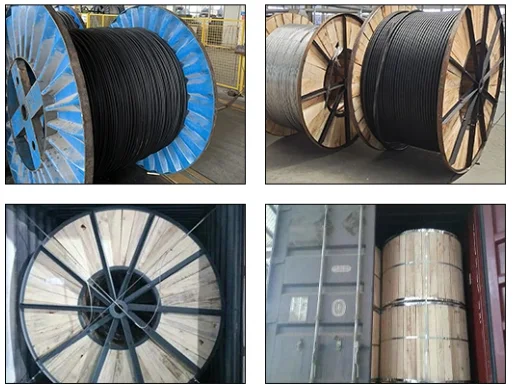

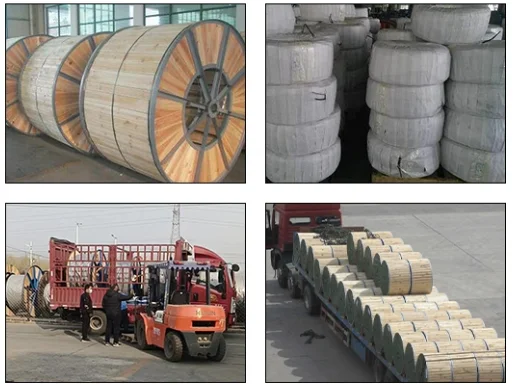

Packing & Delivery

We are a manufacturer that integrates research , development and sales of Overhead Transmission Line Hardware, telecom accessories in China. Providing customized services, send us your proposal.
