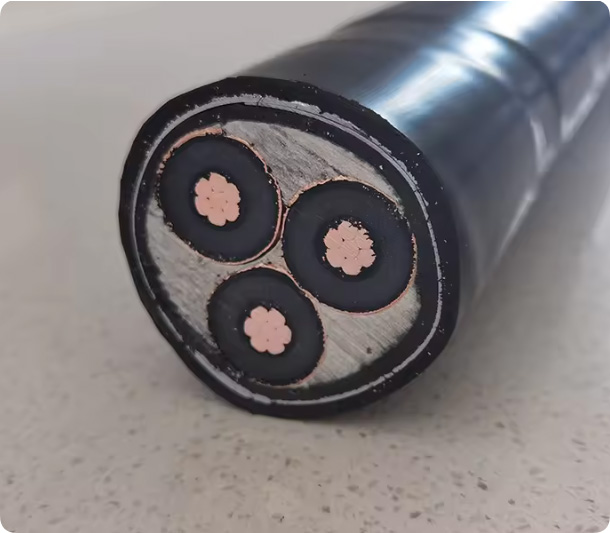

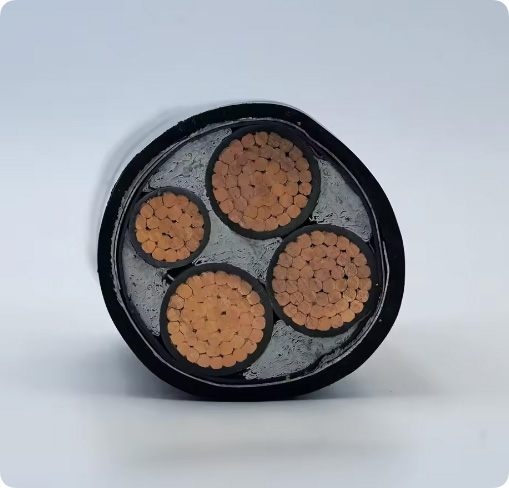

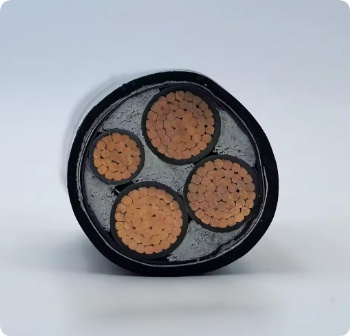

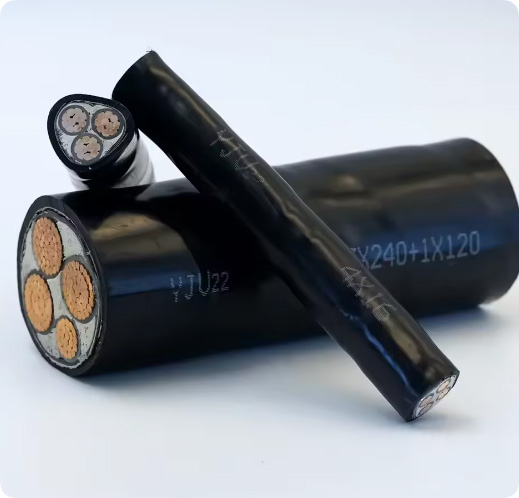

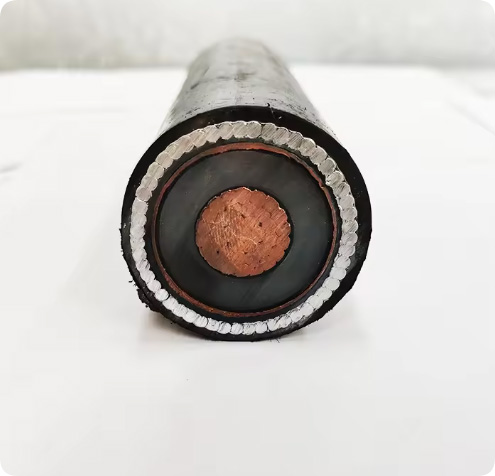

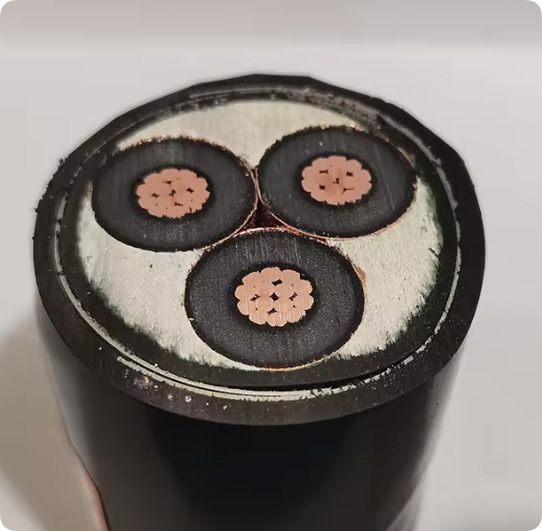

ZC-YJV22 Copper Core Power Cable3x35/3*70/3*240

Medium Voltage Power Cable

Application: XLPE (Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables have the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.

Standards:GB/12706.2, IEC60502-2,BS 6622 , VDE 0276, HD 620 S1，NFC 33-226，IS 1554 , IS 7098 and ICEA S-66-524 etc. Other standards are available

Product Properties:The product is suitable for power transmission and distribution lines with rated power frequency voltage 6kV～35 kV.

Rated voltages:U0/U (Um): 3.6/6 (7.2) kV, 6/10 (12) kV, 8.7/15 (17.5) kV, 12/20 (24) kV, 18/30 (36) kV, 21/35 (40.5) kV,26/35(40.5) kV

Conductor type:Copper and Aluminum

U0: Rated power-frequency voltage between conductor and earth or armor, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um：Maximum value of the highest system voltage between phase conductors for which the cable is suitable.

The ambient temperature for installation: ≥0℃
Maximum conductor temperature in normal operation: ≤90℃
Max operating temperature of conductor when cable short-circuited (5s maximum duration): 250℃
Permissible minimum bending radius:
single unarmored cable: 20 x OD
multi-core unarmored cable: 15 x OD
single armored cable: 5 x OD
multi-core armored cable: 12 x OD

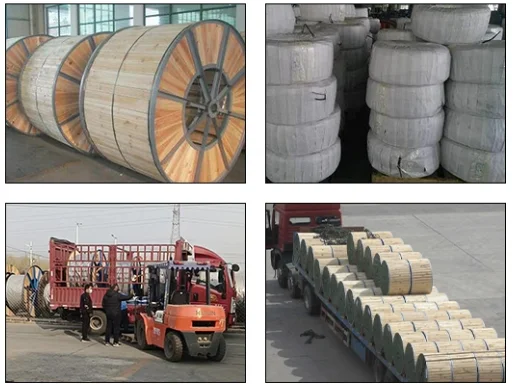

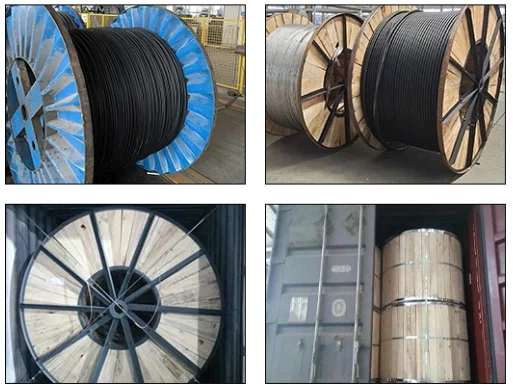

Packing & Delivery
