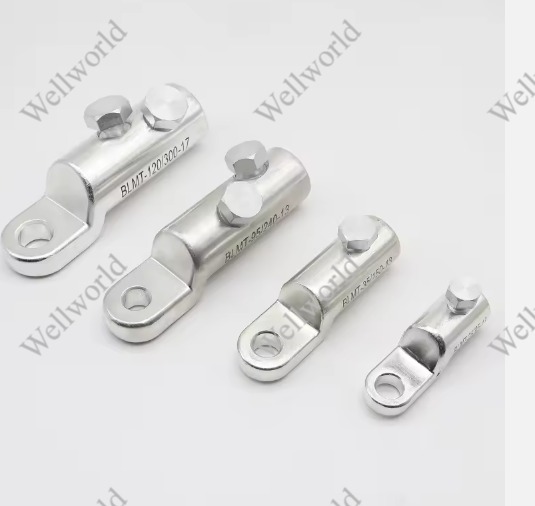

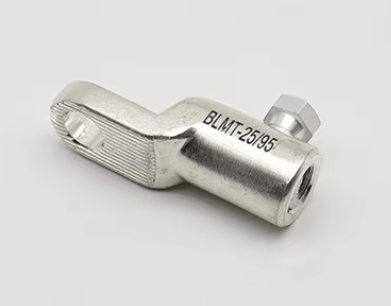

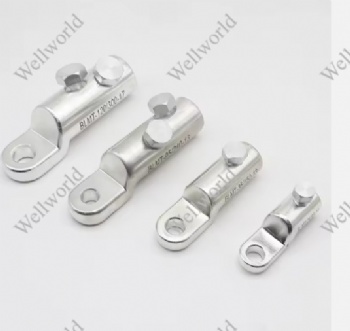

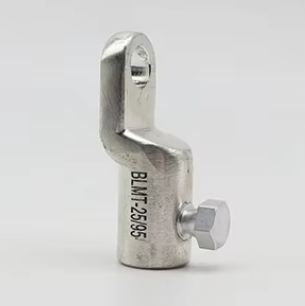

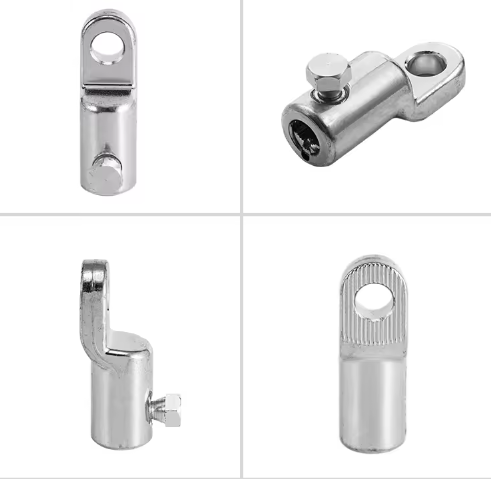

FUSE TERMINAL CONNECTOR/Aluminium Alloy Mechanical Cable Lugs Electrical Terminal Lugs Shear Bolt

Product Introduction:

The Bolt Type Torque Lug is a specialized electrical connector designed to provide a secure and robust connection for electrical
conductors. This type of lug is characterized by its use of a bolt for tightening, ensuring a strong grip and reliable electrical
contact.

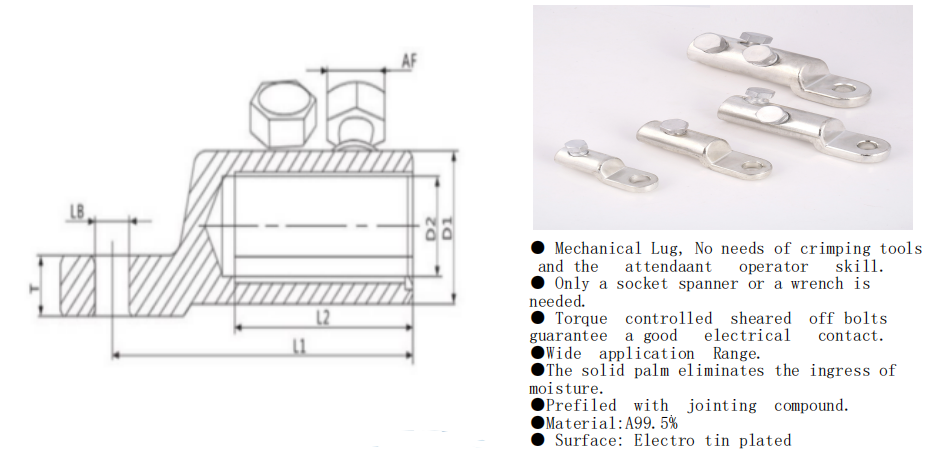

Structural Features:

1. Bolt Hole for Torque Application: Allows for the application of controlled torque to ensure a consistent and secure
   connection.
2. High-Strength Construction: Built to withstand high mechanical forces, providing durability in demanding environments.
3. Corrosion Resistance: Often plated or coated with materials like tin or nickel to protect against corrosion and ensure
   long-term reliability.

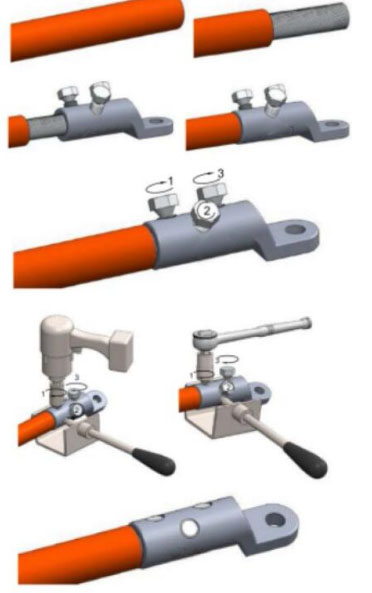

Installation Process:

1. Wire Preparation: Strip the insulation from the conductor to the appropriate length.
2. Lug Insertion: Insert the conductor into the lug, ensuring it is fully seated.
3. Bolt Tightening: Tighten the bolt using a torque wrench to the manufacturer’s specified torque value.
4. Verification: Inspect the connection to confirm that it is secure and that the conductor is properly crimped within the lug.

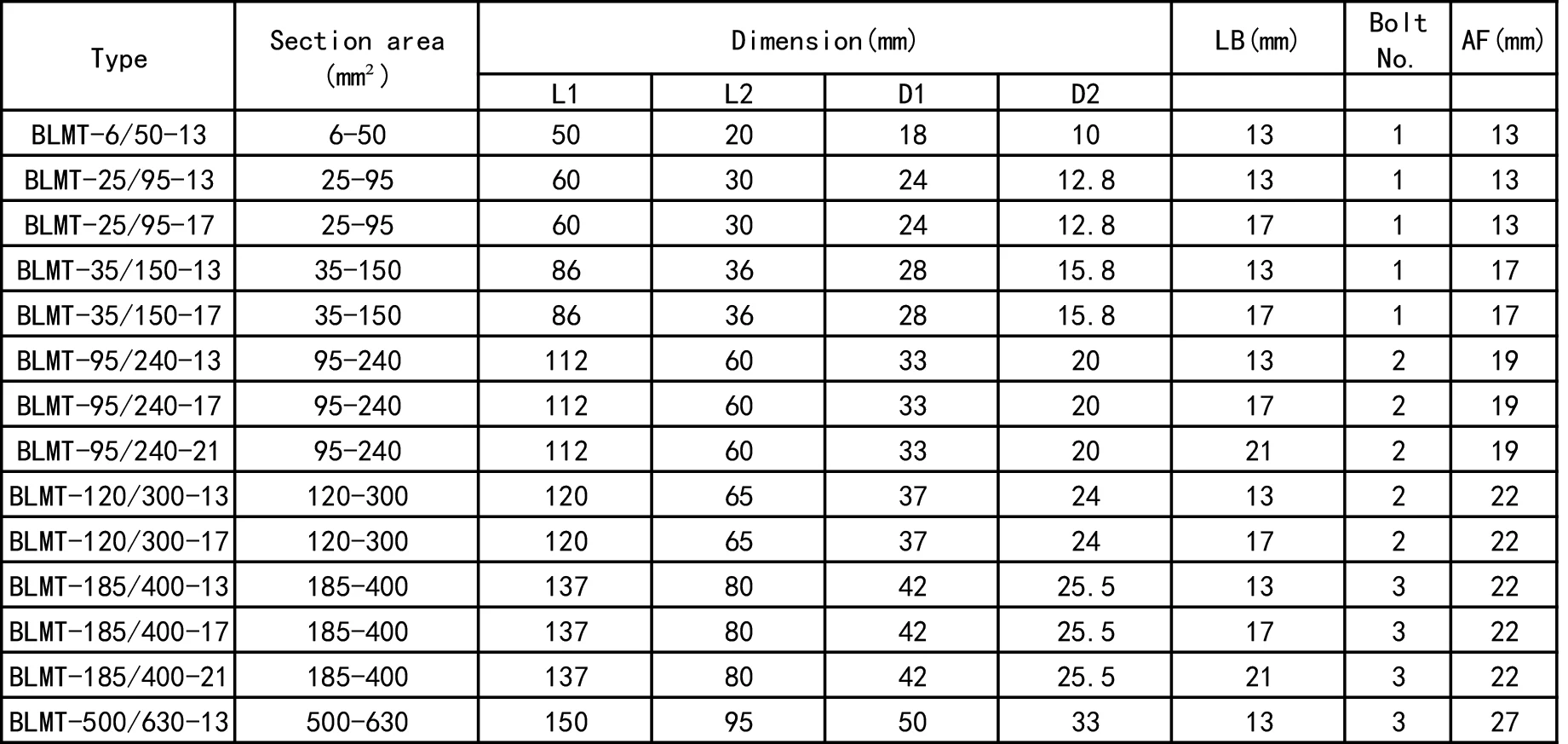

Specifications

Application
