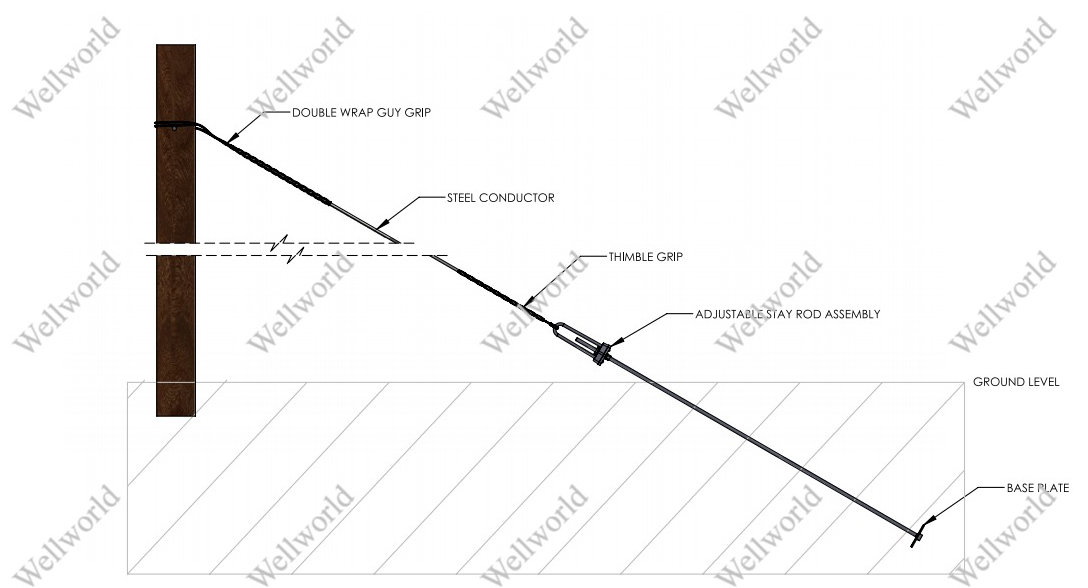

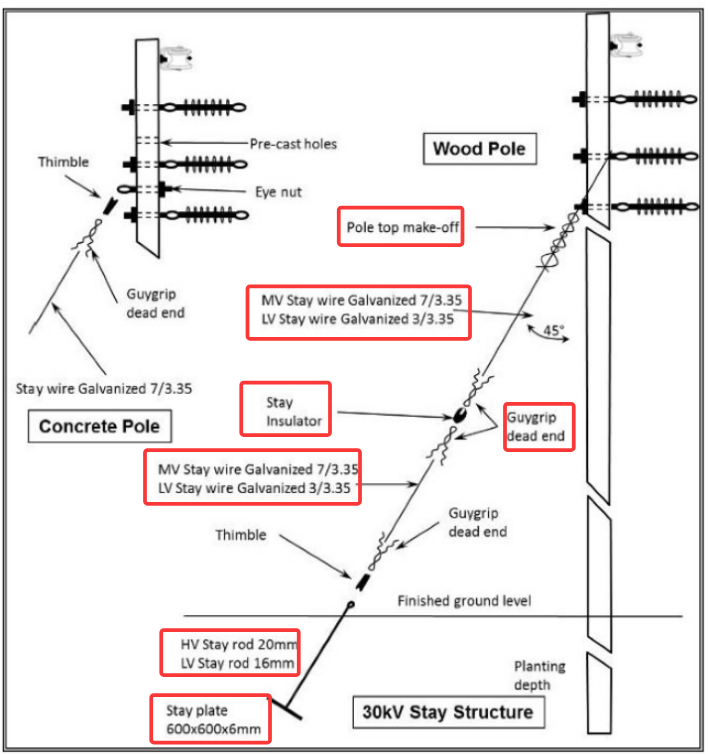

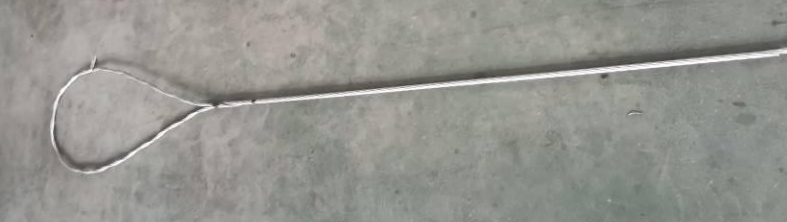

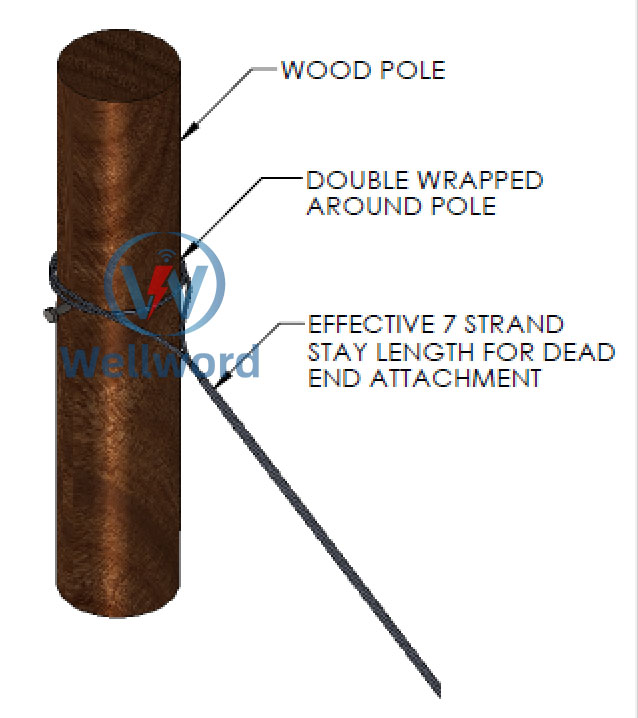

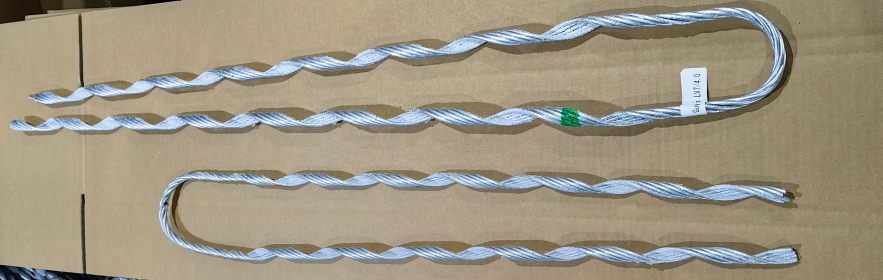

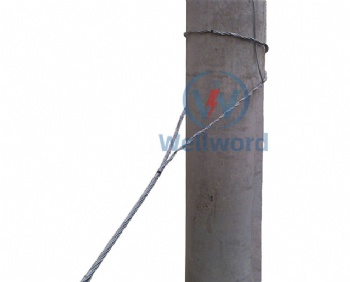

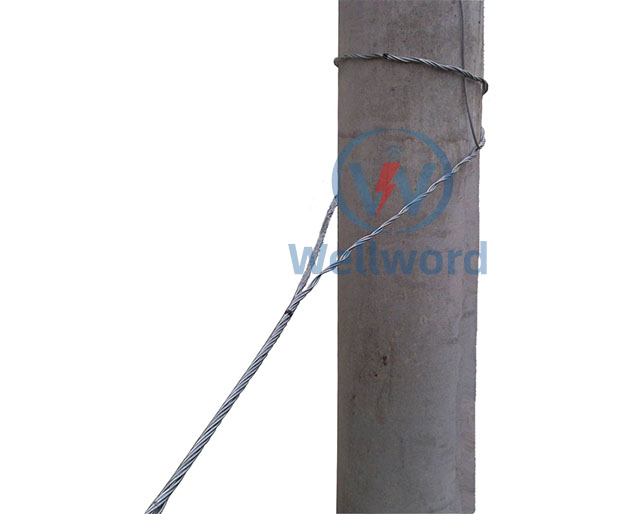

The Pole top makes off is used as a clamp which is aim to firm the pole on the earth.
As a leading manufacturer, supplier, and exporter, Wellworld Power can support all sizes of pole tops, We can also customize them according to your designs. Wellworld Power pole top makes off replaced the wedge clamp and UT clamp and make the installation more simple.
Related products

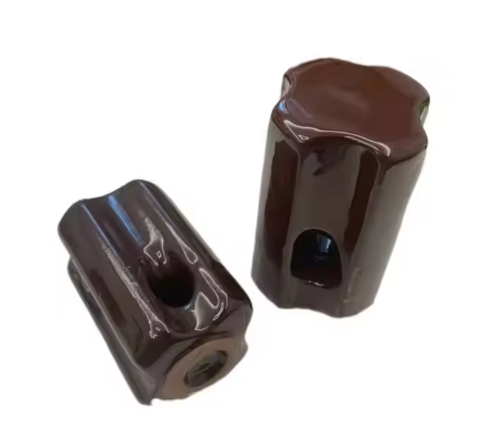

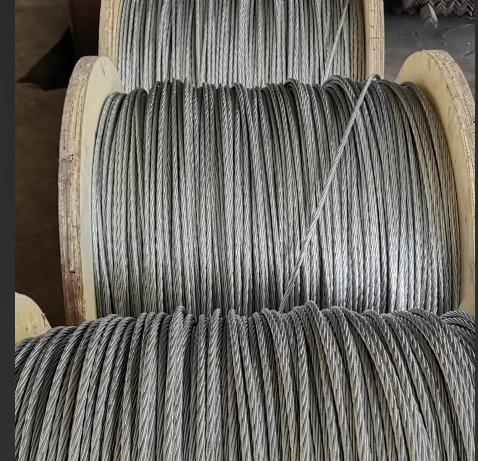

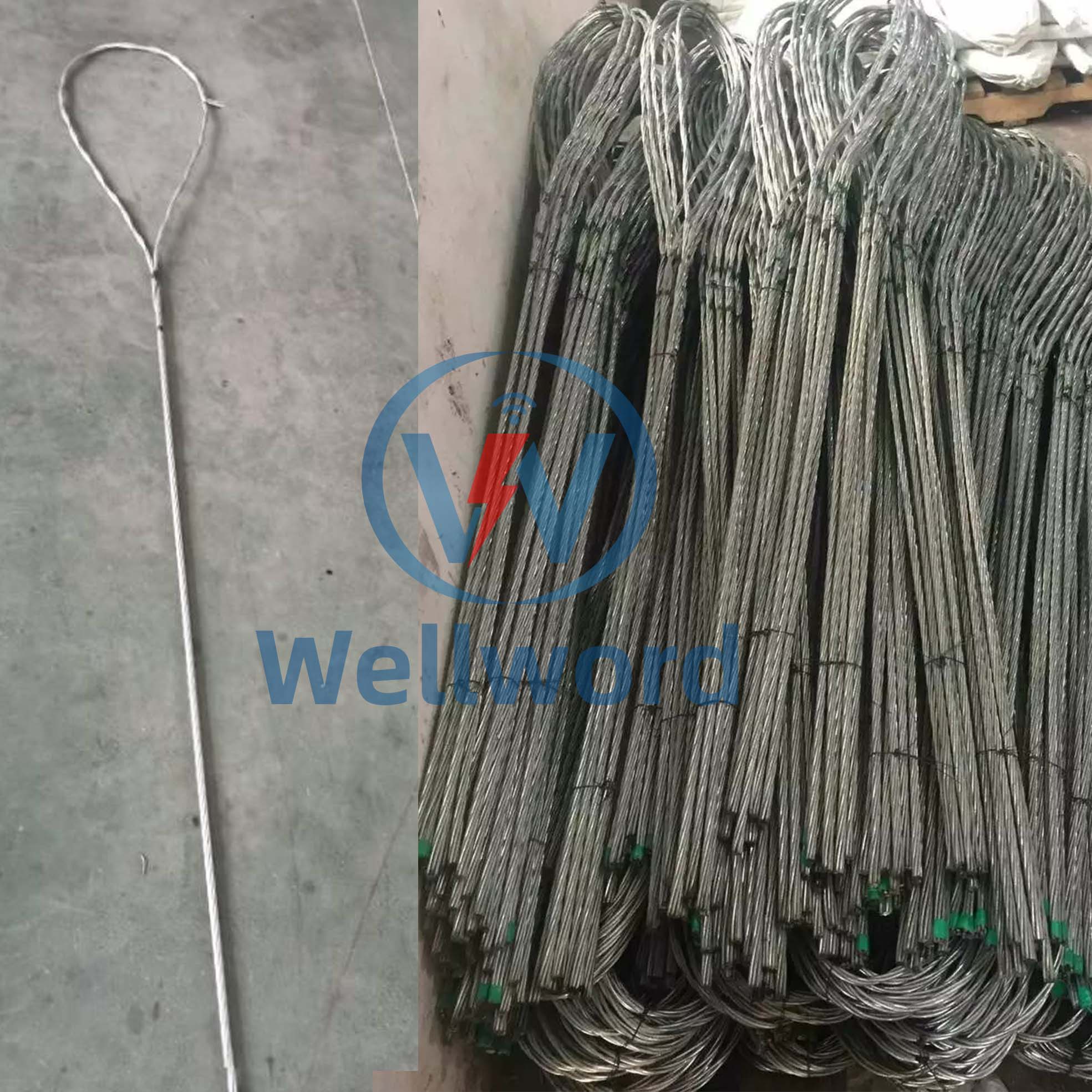

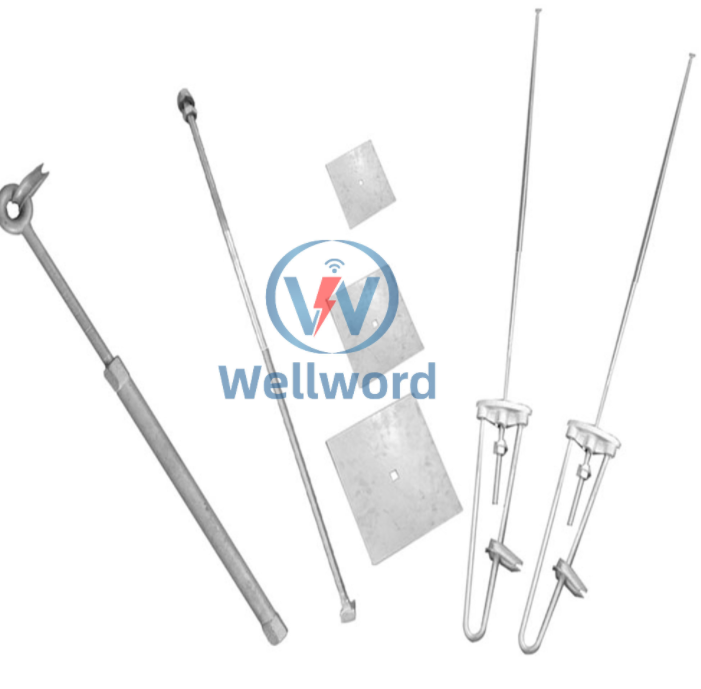

Pole top make off ,Guy grip dead end ,Stay wire ,Stay insulator,Stay rod,Stay plate

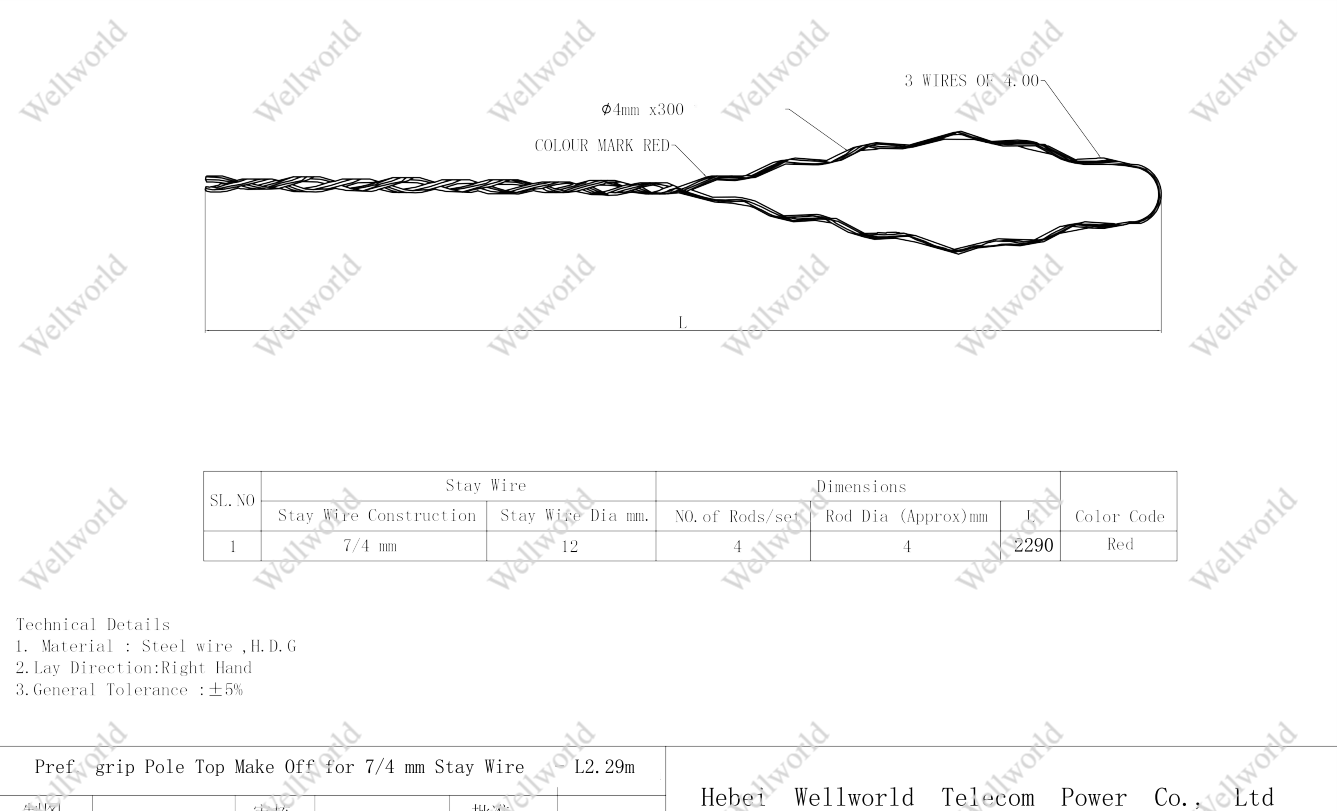

| WW. NO | Stay Dia. | Stranding | Rods | Sets | Approx | Approx |
| mm | mm | per set | per pack | Pack Mass | Length | |
| (kg) | (mm) | |||||
| 284-6 | 7.21 | 3/3.35 | 4 | 15 | 8 | 2290 |
| 312-6 | 7.92 | 7/2.65 | 4 | 15 | 14 | 2290 |
| 345-6 | 8.76 | 3/4.00 | 4 | 15 | 17 | 2290 |
| 384-6 | 9.75 | 7/3.25 | 4 | 15 | 19 | 2290 |
| 386-6 | 9.8 | 4/4.00 | 4 | 15 | 19 | 2290 |
| 396-6 | 10.06 | 7/3.35 | 4 | 15 | 14 | 2290 |
| 432-6 | 10.97 | 5/4.00 | 4 | 10 | 17 | 2290 |
| 472-6 | 12.19 | 7/4.00 | 4 | 10 | 20 | 2290 |
| 520-6 | 13.25 | 19/2.65 | 4 | 10 | 24 | 2290 |
| 640-6 | 16.25 | 19/3.25 | 7 | 5 | 18 | 2290 |

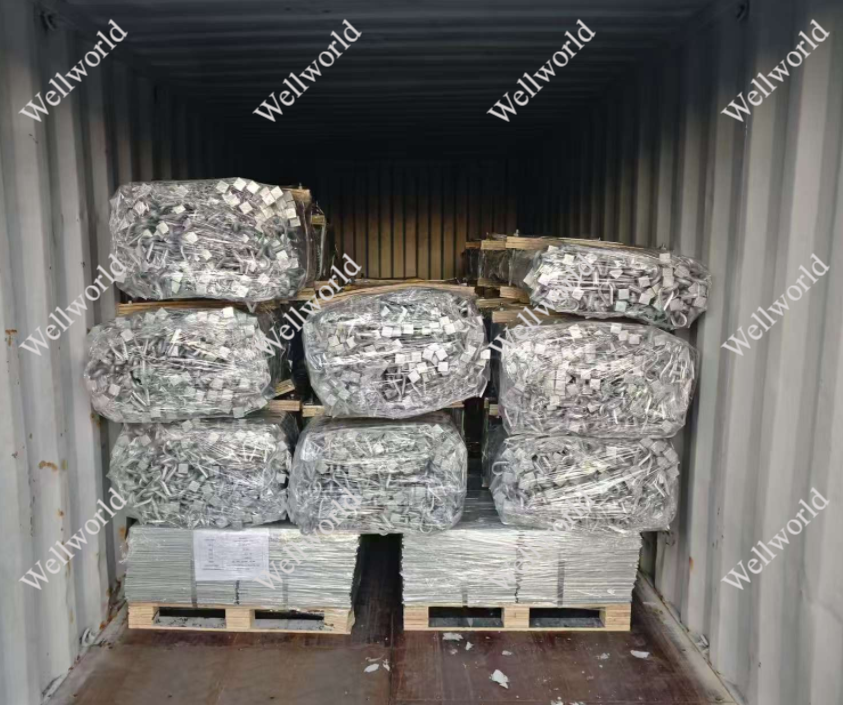

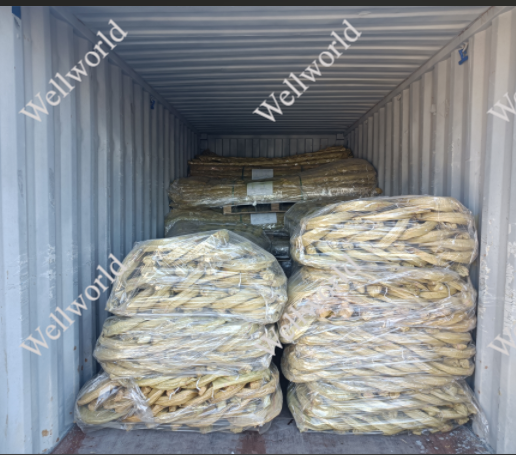

Shipment
We are a manufacturer that integrates research , development and sales of Overhead Transmission Line Hardware, telecom accessories in China. Providing customized services, send us your proposal.
